This machine is applied as supporting equipment,before fine crushing process in trades such as pharmaceutical,chemical and foodstuff ect.,which has better crushing effect for any material without limitation on its viscosity,hardness,softness and fiber ect.
Main Application:
This machine is applied as supporting equipment,before fine crushing process in trades such as pharmaceutical,chemical and foodstuff ect.,which has better crushing effect for any material
without limitation on its viscosity,hardness,softness and fiber ect.
Working principle:

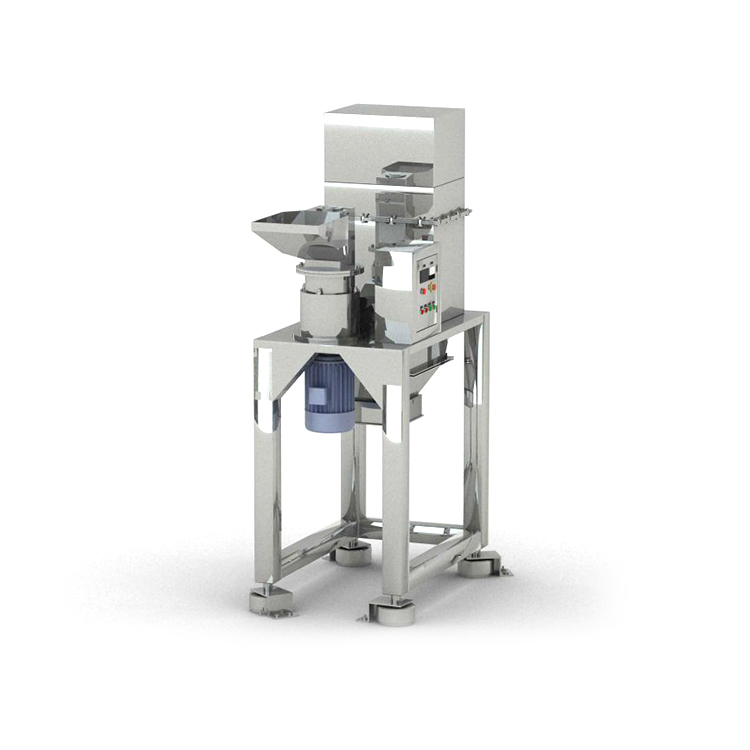

This machine is made of stainless steel according to GMP standard,and the material is fed into the crushing chamber through a hopper, crushed by simultaneous cutting and impact of both
fixed and movable knives,and flowed to the exit automatically under the effect of rotating centrifugal force.With the characteristics including high output,low noise and convenient cleaning,
this machine has reached international advanced level.
| Model | Production Capacity | Feeding Size | Crushing Finess | Spindle Speed | Crushing Moter | Dust collecting Moter |
|---|---|---|---|---|---|---|
| WCSJ-20B IV,V | 100-500kg/h | ≤100mm | 0.5-20mm | 960r/min | 5.5KW | 1.5kw |
| WCSJ-320B IV,V | 300-1200kg/h | ≤100mm | 0.5-20mm | 1070r/min | 11KW | 1.5kw |
