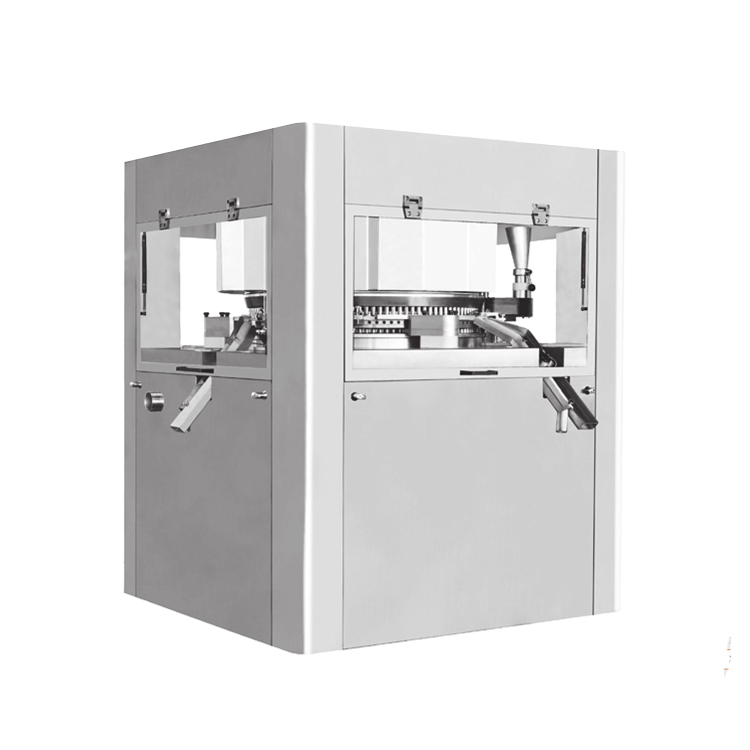

Home » Products » Tablet Press Machine » GZPK-1060 Automatic Tripe Rotary High Speed Tablet Press Machine
Applications
Feeding powder in three hoppers.Tablets compressed at three sides. Tablets ejected through three sides chute.High production efficiency.
Tri-wheeled double deck feeding system.To ensure the uniformity of feeding.
Special oil, dust and noise prevention system.Separate control cabinet to operae the machine;ensures the safety for operator and sanitation for production.
No handwheel control.The filling system use servo motor control which has fast reaction speed. The main pressure and pre-pressure use synchronous motor control.The location of main pressure and pre-pressure measured through the encoder, accurate data and reduce manual errors.
Can adjust filling volume to control tablet weight. If over-fiKing or less-filling or the punch force over-limit,the machine will give alarm.The over-weight and less-weight tablets can be rejected.
With tablet data screen printing function
Technical parameters
|
參數 |
Data |
GZPK-76 |
GZPK-95 |
GZPK-113 |
GZPK-122 |
|
沖頭數 |
No. of stations |
76 |
95 |
113 |
122 |
|
最大產量（片/小時） |
Max output (Tablets/h) |
697000 |
872000 |
1037000 |
1500000 |
|
最大轉速（轉/分鐘） |
Max speed (rpm) |
51 rpm |
68rpm |
||
|
主壓力 |
Main pressure |
100KN |
|||
|
預壓力 |
Pre-pressure |
||||
|
沖具型式 |
Tooling type |
D |
B |
BB |
BBS |
|
最大片徑 |
Max tablet diameter |
25mm |
16mm |
13mm |
11mm |
|
異型片最大長度 |
Max length of irregular tablet |
25mm |
19mm |
16mm |
13mm |
|
中模直徑 |
Diameter of die |
38.1 mm |
30.16mm |
24mm |
21mm |
|
最大填充深度 |
Max filling depth |
20mm |
20mm |
16mm |
16mm |
|
主電機功率 |
Main motor power |
18.5kW |
|||
|
沖桿直徑 |
Diameter of punch |
25.35mm |
19mm |
||
|
重量 |
Weight |
8000kg |
|||
|
主機外形尺寸 |
Dimension of machine |
1720 x 1720 x 2185mm |
|||
